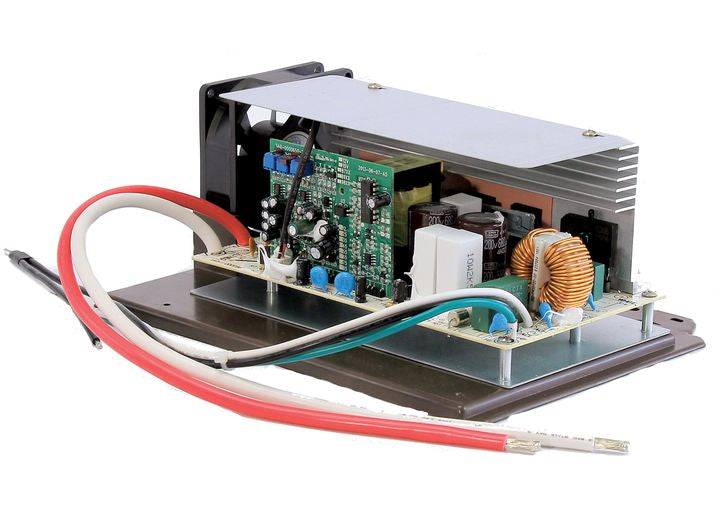

WFCO Replacement Main Board Assembly for WF-8975-AD Series Converter - 75 AMP DC

This WFCO Main Board Assembly replaces the lower power converter section in a WFCO WF-8945-AD Series Power Center that includes industry first, patent pending, Auto-Detect technology. It installs easily with only two screws, three AC wires, and two DC wires.

• WFCO Replacement Main Board Assembly
,
• Replaces the Lower Power Converter Section on WF-8975-AD Series Power Center
,
• Auto-Detect Intelligent Battery Detection
,
• Power Input: 1300W
,
• Input Voltage: 105-130 VAC / 60 Hz
,
• Output Current (LA/L2): 75A / 70A
,
• Converter Type: 3 Stage Converter Charger / 2 Stage Converter Charger
,
• Voltage Output: 13.2 - 14.4 VDC / 13.6 - 14.6 VDC
,
• Normal Mode: 13.6 VDC
,
• Trickle Charge Mode (LA Only): 13.2 VDC
,
• Bulk Charge Mode: 14.4 VDC / 14.6 VDC
,
• Dimensions: 7-1/16"W x 3-7/8"H x 9-1/2"D
,
• Weight: 8 lbs.
,
• Certifications: UL and cUL listed and FCC Class B Compliant
,
• Safety Features/Protections: Over Current, Over Temperature, Over Voltage, Reverse Polarity
