Go Power!

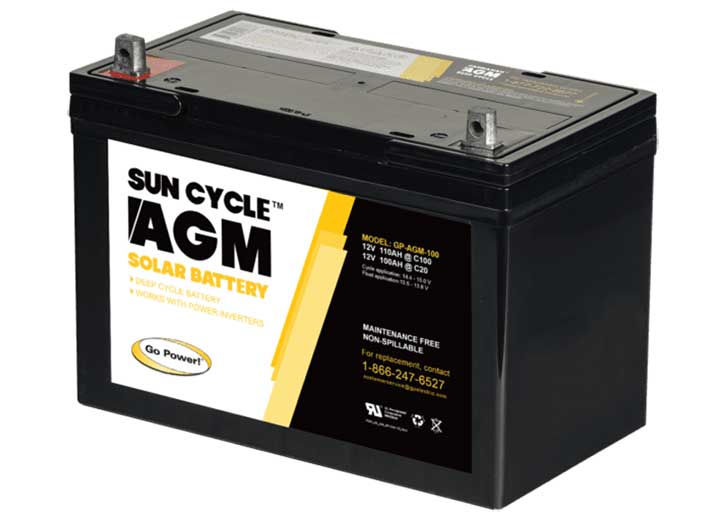

Go Power! 12 Volt Sun Cycle AGM Deep Cycle Solar Battery

Go Power! 12 Volt Sun Cycle AGM Deep Cycle Solar Battery

$435.90
Shipping calculated at checkout.
View full details

The Go Power! Sun Cycle AGM Deep Cycle Solar Battery is ideal for solar applications and inverter systems. It is a lead sulfuric acid battery. The case and cover are made from ABS with an absorbent glass mat (AGM) separator. The rubber venting valve has an opening pressure of 8-20kPa. It has a maintenance-free, sealed construction with integrated carrying handles. It is spill proof/leak proof (VRLA) and 100% recyclable. The battery can be stored for up to 6 months before a freshening charge is required. Batteries stored at temperatures greater than 77°F (25°C) will require a recharge sooner.

  • Go Power! Sun Cycle AGM Solar Battery
    • ,
  • Go Power! Part #: GP-AGM-100-12V
    • ,
  • Designed for Solar & Inverter Use
    • ,
  • Technology: AGM, VRLA Deep Cycle Battery
    • ,
  • BCI Group # 27
    • ,
  • Nominal Voltage: 12 V
    • ,
  • Nominal Capacity: 110 Ah
    • ,
  • Rated Capacity: 110.0 Ah/1.10A (100hr,1.80V/cell); 100.0 Ah/5.00A (20hr,1.80V/cell); 95.2 Ah/9.52A (10hr,1.80V/cell); 83.0 Ah/16.6A (5hr,1.75V/cell)
    • ,
  • Nominal Operating Temperature: 77 ±5°F (25 ±3°C)
    • ,
  • Operating Temperature Range (Discharge, Storage): -4 ~ 140°F (-20 ~ 60°C)
    • ,
  • Operating Temperature Range (Charge): -4 ~ 122°F (-20 ~ 50°C)
    • ,
  • Capacity Correction for Temperature Variations: 104°F (40°C) - 103%; 77°F (25°C) - 100%; 32°F (0°C) - 86%
    • ,
  • Maximum Discharge Current: 1200 A (5s)
    • ,
  • Internal Resistance: Approx. 4.9 Mili-Ohms
    • ,
  • Terminals: T14 (Torque: 11 ~14.7 Nm (97.28 - 130in*lbs))
    • ,
  • Cycle Use: Initial Charging Current Less than 30.0 A
    • ,
  • Cycle Use Voltage: 14.4V ~ 15.0 V at 77° F (25°)
    • ,
  • Cycle Use Temp Coefficient -30mV/°C
    • ,
  • Standby Use: No Limit on Initial Charging Current
    • ,
  • Standby Use Voltage: 13.5 V ~ 13.8 V at 77°F (25°C)
    • ,
  • Standby Use Temp. Coefficient: -20mV/°C
    • ,
  • Cycle Life at 77°F (25°C): 100% Depth of Discharge ~ 250 Cycles; 50% Depth of Discharge ~ 1110 Cycles; 30% Depth of Discharge ~ 2250 Cycles
    • ,
  • Certifications: UL; CE; IEC60896-21 & 22
    • ,
  • Dimensions: 12.01"L x 6.61"W x 8.15"H (9.02"H Including Terminals)
    • ,
  • Weight: 67.5 lbs.
    • ,
  • Specifications Subject To Change Without Notice
    • ,
  • Specifications Subject to Local Environmental Conditions
