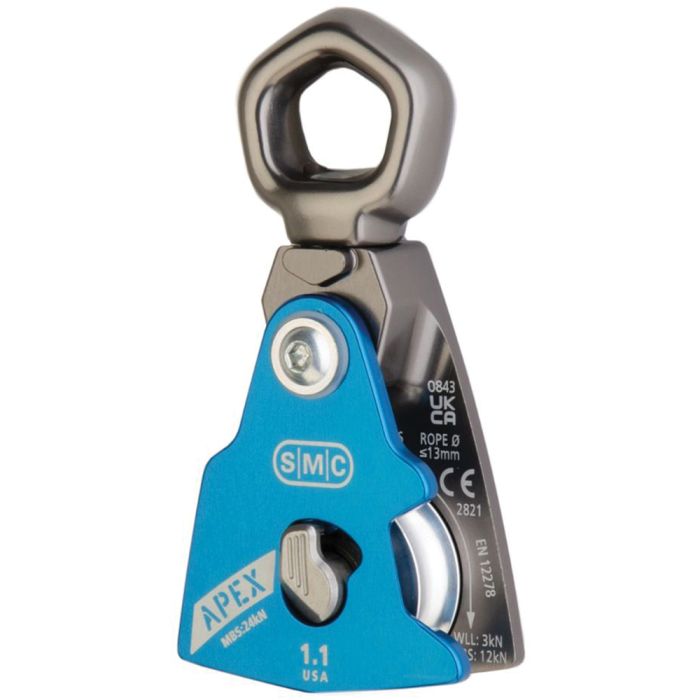

SMC APEX 1.1" SWIVEL PULLEY
SMC APEX 1.1" SWIVEL PULLEY
This personal sized Apex Swivel Pulley offers both easy one-handed operation and unmatched security. The Apex is a mid-line attachable pulley that secures the rope using a low-profile, patented, triple-action lock mechanism. This lock is operated by three distinct actions: pivot the lock button, depress it, then swing open the side plate. Simply closing the side-plate re-engages the lock mechanism and solidly secures the rope. The operation is intuitive and ergonomic. The Apex features symmetrical side-plates which are optimized for integration with prusik-based progress capture systems. This streamlines system set-up and minimizes the possibility of mis-rigging. The swivel eye on the 1.1" was designed to accommodate a single carabiners. It is also soft-goods-compatible for situations where you want to eliminate the carabiner altogether. The U.S. made Apex Pulley line represents the new standard for rescue, rope access, or arborism.
Features:
- Type: Single
- Axle: Stainless Steel
- Material: High Quality Aluminum
- Dimensions: 5.9" x 2.9” x 1.13”
- Weight: 10.8 oz (306 g)
- Max. Rope: 1/2” (13mm)
- Sheave: 1.5” Aluminum
- 3 Sigma MBS: 38kN (8,543 lbf)
- NFPA Certified
- Made In USA
