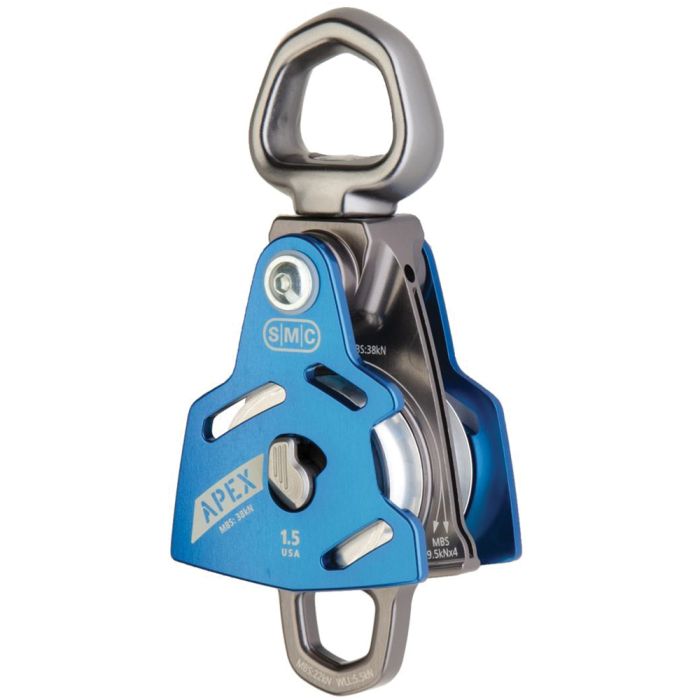

SMC APEX DOUBLE 1.5" SWIVEL PULLEY
SMC APEX DOUBLE 1.5" SWIVEL PULLEY
Regular price
$169.00
Unit price
per
Swivel-pulley from SMC. Cold-forged swivel eye offers 360-degrees of access, with space for up to three carabiners. Rounded shape is excellent for use with textiles and carabiners alike. The symmetrical side-plates are optimized for use in prusik-based progress capture systems. When unlocked and fully open, the Apex allows versatility when loading the rope anywhere in the system without disconnecting the pulley from the anchor. A simple lock mechanism is easy to operate and allows opening with one-hand. Simply pivot the lock, depress the lock, and swing the side-plate. Closing the side-plate re-engages the lock and secures the rope. 100% American-made by SMC.
Features:
- Anodized Finish
- Dimensions: 5.9" x 2.9"
- Weighs: 10.8 oz
- MBS: 38 kN
- WLL 9.5 kN
- Max Rope Diameter: Up to 13mm
- Sheave Major Diameter: 2"
- Sheave Tread Diameter: 1.5"
- Certifications: NFPA
