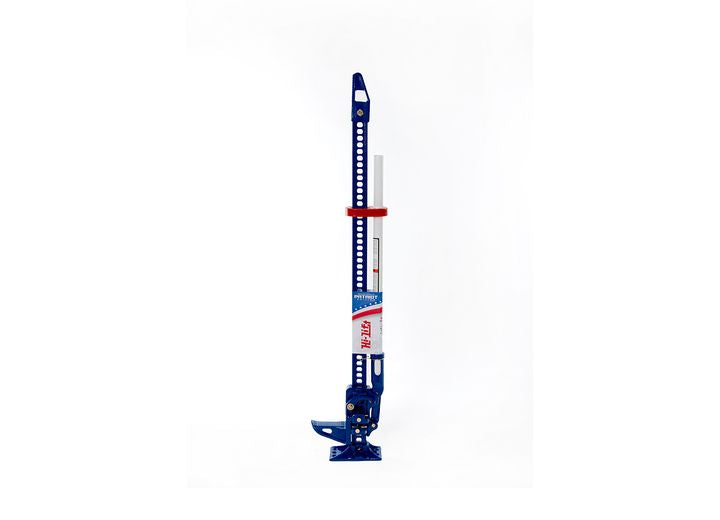

Hi-Lift Jack Hi-Lift Patriot Edition All-Cast Jack – 48 in.

The Hi-Lift Patriot Edition Jack is an all-cast jack constructed with cast iron components for ultimate strength and durability. It features a blue powder coated finish with zinc-plated hardware, white powder coated two-piece handle and socket, and a red handle-keeper. This jack is rugged, highly versatile, and puts you in command of situations requiring lifting, pushing, pulling, winching, and clamping. The Hi-Lift Jack comes complete with an adjustable top clamp/clevis for use in clamping and winching. The safety bolt is designed to shear at 7,000-pounds. For speedy disengaging, the lifting unit automatically drops away when the load is removed. It has a 4.5-inch long lifting nose for positive contact with the load. The climbing pins are made from specially processed steel with 125,000 PSI tensile strength and 100,000 PSI yield. The steel bar is manufactured of specially rolled extra high carbon steel with 80,000 minimum tensile and carbon .69 to .82. The steel bar can be reversed for extra long life. The steel handle is made of 14-gauge high-yield structural tubing with minimum yield of 55,000 PSI.

• Hi-Lift Patriot Edition All-Cast Jack
,
• Size: 48 in.
,
• Minimum Lift Height: 4.5 in.
,
• Maximum Lift Height: 38.63 in.
,
• Rated Load (RL): 4,660 lbs.
,
• Tested Load (TL): 7,000 lbs.
,
• Winching Capacity: 5,000 lbs.
,
• Clamping Capacity: 750 lbs.
,
• Overall Dimensions: 5 in. W x 9.63 in. D x 50.75 in. H
,
• Steel Handle: 30 in. Long x 1-5/16 in. Diameter
,
• Lifting Nose: 4.5 in. Long
,
• Base Plate: 28 sq. in.
,
• Weight: 28.16 lbs.
,
• Lifts, Winches, Clamps, & More
,
• All-Cast Construction for Superior Strength & Longevity
,
• Blue Powder Coated Finish
,
• White Powder Coated Handle
,
• Red Handle-Keeper
,
• Zinc-Plated Hardware
,
• Tested & Certified to Meet Applicable Requirements of ASME B30.1-2015
