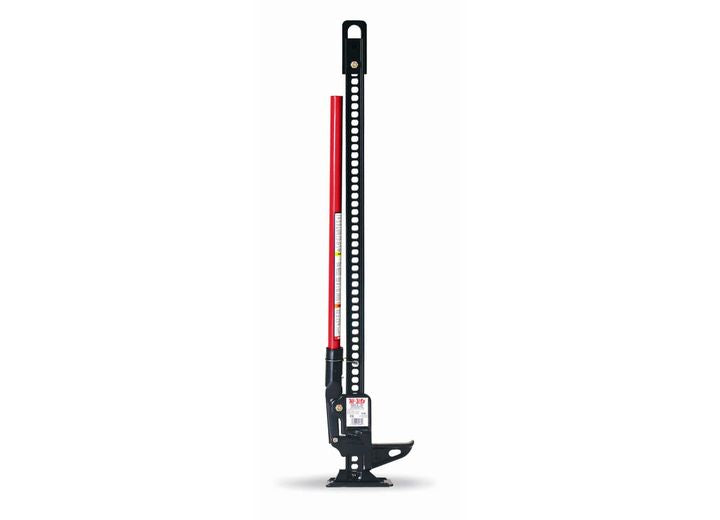

Hi-Lift Jack Hi-Lift Cast/Steel Jack – 48 in.

We call these Hi-Lift jacks "jacks of all trades" because they have an adjustable top clamp clevis that allows them to be used for clamping, lifting, winching, or hoisting. With a base plate of 28 sq. in. and a super-strong upright cast steel bar, the jacks are tough enough to handle any situation. They feature easy, automatic operation for raising and lowering loads, and a speedy disengagement system that lets the lifting unit drop away when pressure is removed. The jacks use horizontal operating climbing pins for safe, positive contact.

• Hi-Lift Cast/Steel Jack
,
• Size: 48 in.
,
• Minimum Lift Height: 4.5 in.
,
• Maximum Lift Height: 37.24 in.
,
• Rated Load (RL): 4,660 lbs.
,
• Tested Load (TL): 7,000 lbs.
,
• Winching Capacity: 5,000 lbs.
,
• Clamping Capacity: 750 lbs.
,
• Overall Dimensions: 5 in. W x 9.63 in. D x 48.75 in. H
,
• Steel Handle: 30 in. Long x 1-5/16 in. Diameter
,
• Lifting Nose: 4.5 in. Long
,
• Base Plate: 28 sq. in.
,
• Weight: 27.66 lbs.
,
• Lifts, Winches, Clamps, & More
,
• Premium Cast & Stamped Steel Parts
,
• Steel Parts Include: Top Clamp-Clevis, Pitman, Handle Socket, & Foot Piece
,
• Tested & Certified to Meet Applicable Requirements of ASME B30.1-2015
