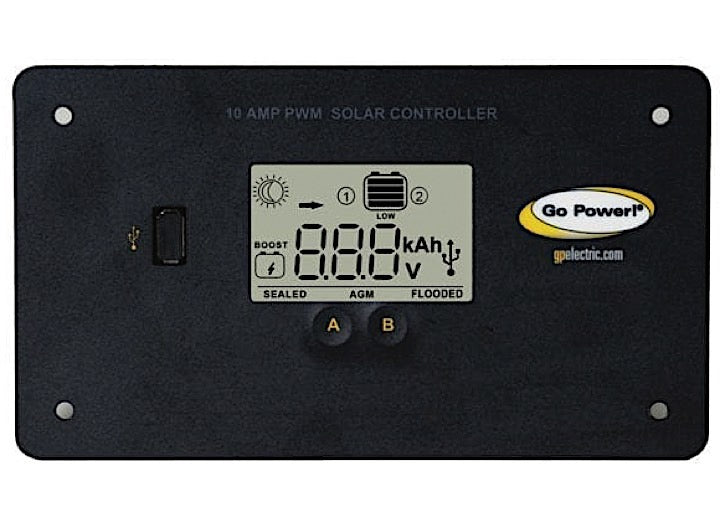

Go Power! 10 Amp Flush-Mounted Digital Solar Controller

The Go Power! 10 amp Flush-Mounted Solar Controller regulates flow from the solar panels to the battery and prevents overcharging and optimizes battery lifespan. It uses pulse width modulation (PWM) charging and is flush mounted for a finished installation. It uses unique four stage charging to protect your battery bank. It accepts up to 190 watts (12V solar panels) and is rated for a continuous solar current input of 10 amps. It has backlit, easy to read LCD screen displays for charging current, battery voltage, and battery state of charge. It has a built-in USB charge port.

• Go Power! Flush-Mounted Digital Solar Controller
,
• Go Power! Part #: GP-PWM-10-FM
,
• Nominal System Voltage: 12V
,
• Max Solar Array Current: 10A
,
• Battery Voltage Range: 6V - 15.5V
,
• Max. Solar Panel Input Voltage: 28V
,
• Operating Consumption: 6mA
,
• Display Consumption: 10mA
,
• Temp. Compensation: -13mV/°F (-24mV/°C)
,
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
,
• Humidity: 99% N.C.
,
• Dimensions: 5.87"H x 3.86"W x 1.26"D
,
• Weight: 9.2 oz.
,
• Maximum Wire Gauge: #4 AWG
,
• Protection: Battery Reverse Polarity, Solar Array Reverse Polarity, Over Temperature, Over Current
,
• Battery Bulk Charge Voltage Set Point: 14.1V (Sealed/Gel); 14.4V (AGM, LiFePO4); 14.7 (Flooded)
,
• Battery Absorption Charge Voltage (30 min/day): 14.1V (Sealed/Gel); 14.4 (AGM, Flooded, LiFePO4)
,
• Automatic Boost Charge Applied for 2hr if Battery Voltage Drops Below 12.3V
,
• Battery Float Charge Voltage: 13V (Sealed/Gel, AGM, Flooded); 14V (LiFePO4)
,
• Battery Equalize Charge Voltage (2h / 28days of V < 12.1V): Disabled (Sealed/Gel, AGM, LiFePO4); 15V (Flooded)
