CMI DOUBLE-ENDED 2 3/8" PULLEY

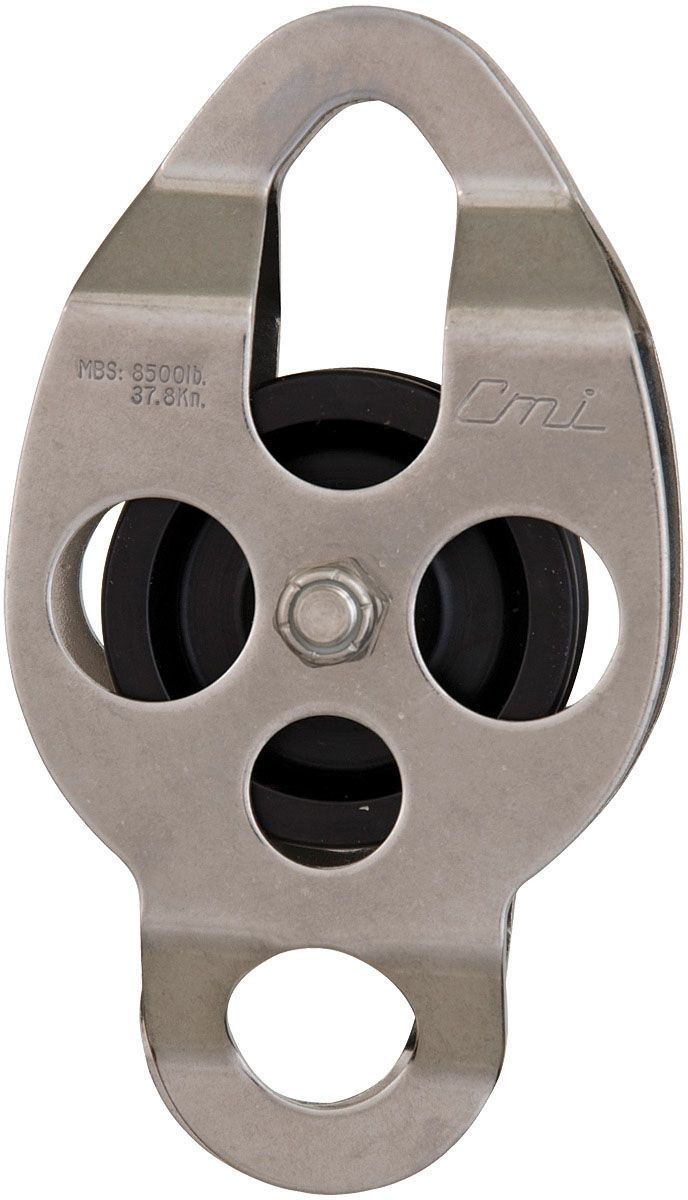

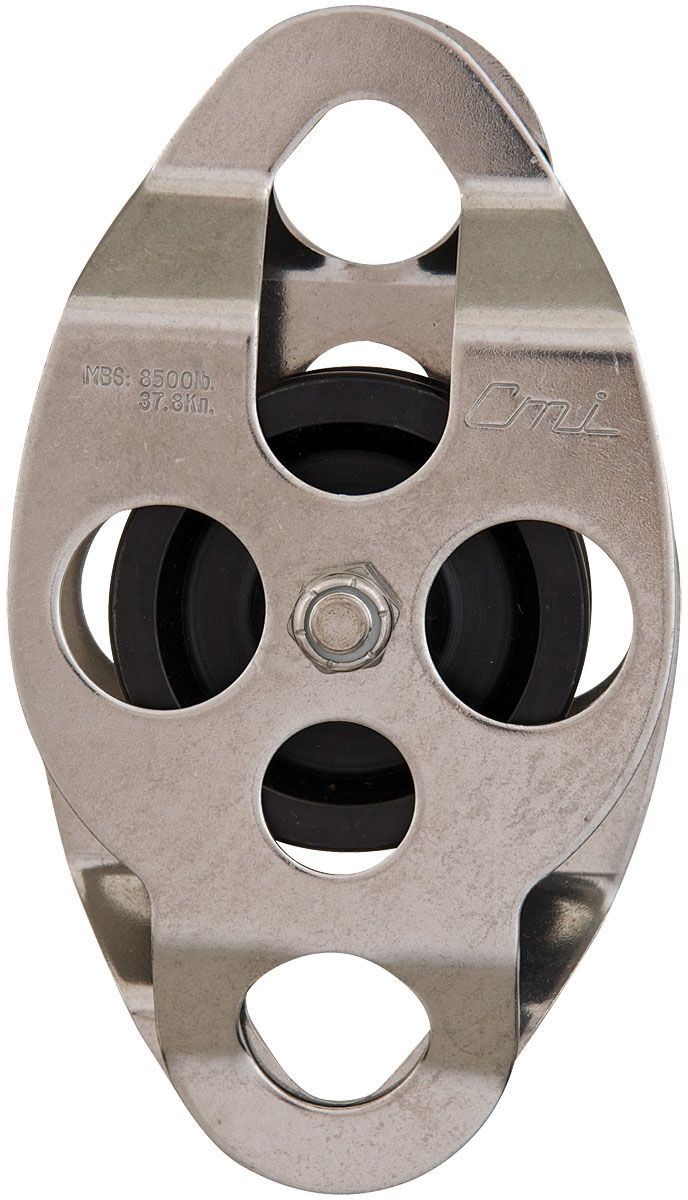

435516: Stainless steel sideplates, 2 3/8" zinc plated steel sheave, needle bearing, and stainless steel axle. Lower attachment point integrated into sideplates. 435554: Stainless steel sideplates, 2 3/8" zinc plated steel sheave, bushing, and stainless steel axle. Lower attachment point integrated into sideplates.

• Part Number: RC105 (435554), RC106 (435516)
• Weight: 1 lbs (435554), 1.05 lbs (435516)
• MBS: 8,500 lbs (37kN)
• Rope Capacity: 5/8"
• Side Plates: Stainless Steel
• Mechanics: Bushing (435554), Bearing (435516)
• Sheave: 2 3/8" Steel
• Axle: Stainless Steel
• Size (in): 6x3.25
• Efficiency: 91.4% (435554), 95.6% (435516)
